Optical Dust Sensor GP2Y1014AU0F Compact 1PCS

Precision Air Quality Monitoring

The GP2Y1014AU0F is a reliable and low-cost solution for sensing air quality. It works on the principle of light scattering: an internal infrared LED emits light, and a sensor detects how much of that light is reflected by dust particles passing through the hole.4 It is sensitive enough to detect particles as small as 0.8 micrometers (µm), making it effective for PM2.5 monitoring.5

Easy Analog Interface

The sensor outputs an Analog Voltage proportional to the dust density in the air.6 The more dust, the higher the voltage. This makes it incredibly easy to interface with any microcontroller like Arduino, ESP32, or Raspberry Pi (with an ADC).7

Improved Performance

This “14AU0F” model is the successor to the older “10AU0F”.8 It features improved sensitivity (0.5V per 0.1mg/m3) and better electromagnetic shielding, resulting in cleaner data readings for your projects.9

Key Features

• High Sensitivity: Detects fine particles (smoke, house dust) as small as 0.8µm.

• Analog Output: Linear voltage output makes coding simple (Voltage increases with dust density).¹⁰



• Low Power: Consumes only 20mA (peak) current.¹¹



• Complete Kit: Comes with the 6-pin cable and the specific resistor/capacitor needed for the LED pulse circuit.¹²



• Compact Size: Small footprint suitable for portable air purifiers or monitors.¹³



Technical Specifications

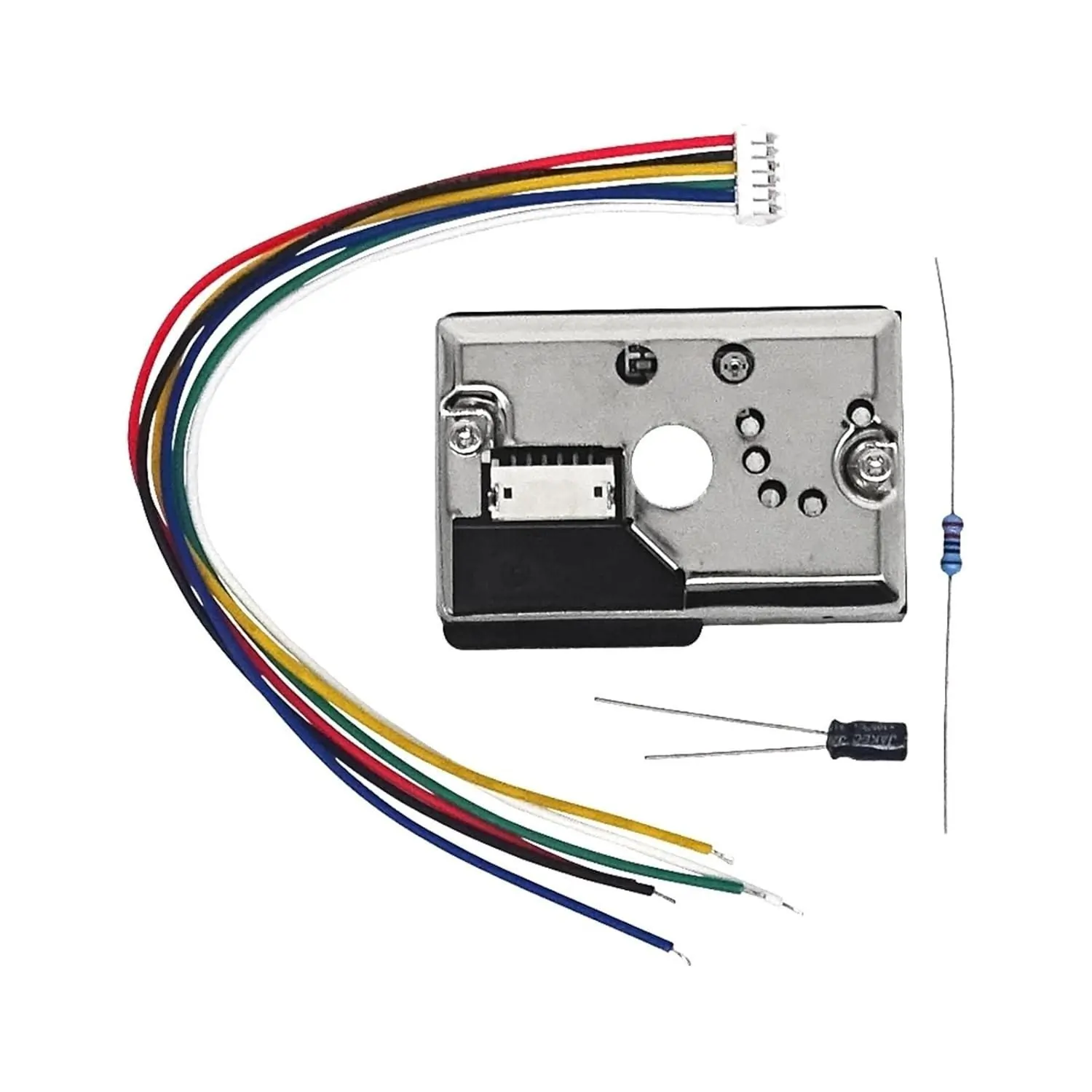

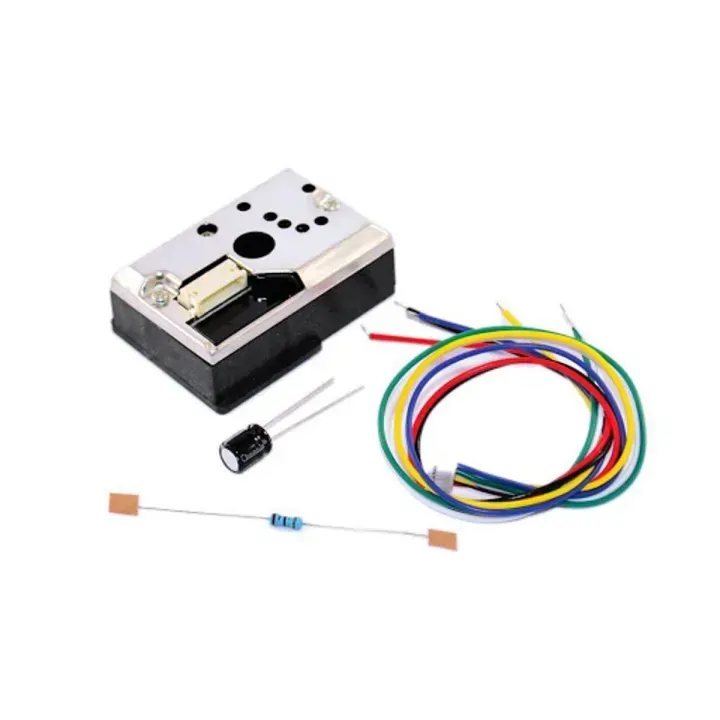

What’s in the Package?

• 1x GP2Y1014AU0F Dust Sensor Module

• 1x 6-Pin Interface Cable¹⁴



• 1x 150Ω Resistor (Required for LED current limiting)¹⁵



• 1x 16V 220uF Capacitor (Required for power stability)¹⁶



Applications

• PM2.5 Air Quality Monitor

• Smart Air Purifier

• Air Conditioner Control

• Smoke Alarm / Ventilation System
