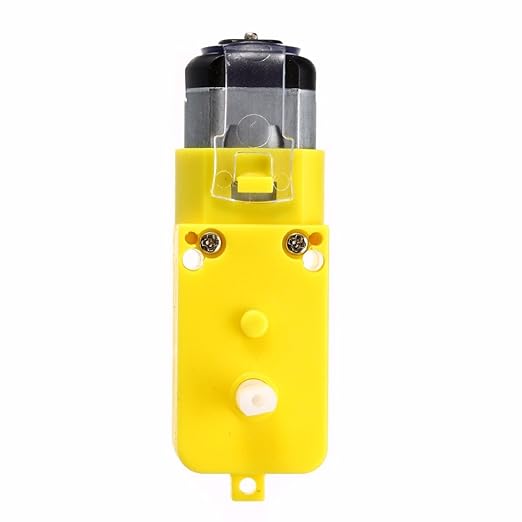

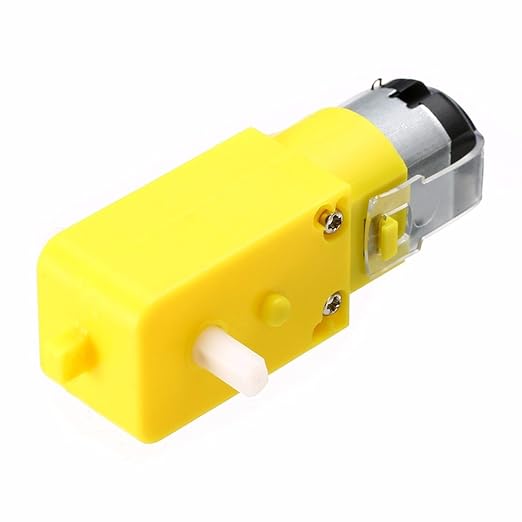

Yellow TT DC Gear Motor 6-12V for Robotics, DIY Cars & Smart Projects

Specifications:

• Model: TT DC Gear Motor (Yellow)

• Operating Voltage: 3V – 12V DC

• Rated Voltage: 6V DC

• No-Load Speed (6V): ~200 RPM

• Gear Ratio: 1:48

• Stall Torque (6V): ≈ 0.8–1.0 kg·cm

• Current: 150mA (no-load), up to 700mA (stall)

• Shaft Type: Single D-shaft

• Material: Plastic gearbox

• Dimensions: 70mm × 22mm × 18mm (approx.)

Key Features:

• Affordable and reliable DC gear motor for educational robotics

• Simple 2-wire connection for easy control

• Compatible with Arduino, Raspberry Pi, and motor driver modules

• Plastic gearbox ensures lightweight construction

• Perfect for small robot cars, line followers, and automation models

Applications:

• Line follower and obstacle-avoiding robots

• Mini robotic car chassis

• DIY educational projects

• Motorized mechanisms and prototypes

FAQs:
Q1: What voltage should I use for best performance?
A: It runs best at 6V to 9V, balancing speed and torque.

Q2: Is the gearbox plastic or metal?
A: This standard yellow TT motor uses a plastic gearbox (light and inexpensive).

Q3: Can I connect this directly to Arduino?
A: Not directly — use a motor driver module (like L298N or L293D).

Q4: Is this the same motor used in 2WD or 4WD robot kits?
A: ✅ Yes, this is the most common motor used in those chassis kits.
