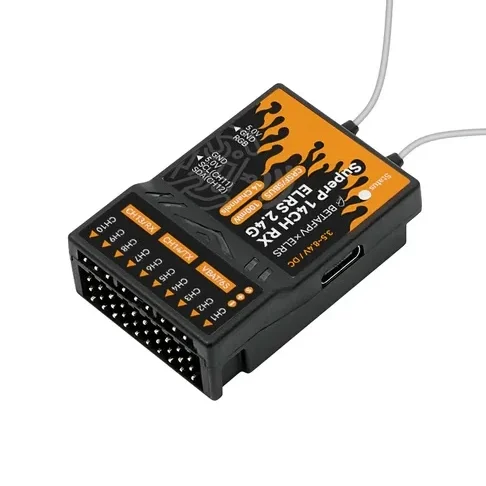

BETAFPV SuperP 14CH Diversity PWM ELRS Receiver

True Diversity & TCXO Stability

Unlike standard receivers with dual antennas, the SuperP features two complete RF receiver chains (True Diversity). This design ensures that if one antenna encounters interference or a “null,” the second chain maintains a perfect link. The integrated TCXO (Temperature Compensated Crystal Oscillator) ensures the frequency remains dead-on accurate, whether you’re flying in the heat of summer or the cold of winter, preventing signal “drift” during long-range missions.

High-Capacity 14-Channel Control

With 14 physical PWM ports, this receiver is the ideal choice for giant-scale airplanes, helicopters, and robotic arms. It can drive 14 servos simultaneously, allowing for complex setups like independent flaps, dual elevators, and retractable landing gear. Additionally, it supports CRSF and SBUS serial protocols, giving you the flexibility to use it with modern flight controllers when needed.

Built-in Sensors & WiFi Setup

The SuperP is packed with smart features, including a built-in voltage sensor (VBAT) that can monitor your main flight battery (1S-6S). Configuring the receiver is effortless; simply use the built-in WiFi hotspot to access the ExpressLRS web UI on your phone or PC to update firmware, set failsafes, or remap channel outputs.

Key Features

• 14 PWM Channels: Direct control for up to 14 servos or ESCs.

• True Diversity: Dual RF chips and dual antennas for superior link redundancy.

• Built-in TCXO: Precision clock source for stable performance in extreme temperatures.

• VBAT Telemetry: Real-time monitoring of main battery voltage (up to 6S).

• Multi-Protocol Support: Switchable between PWM, CRSF, and SBUS outputs.

• USB-C & WiFi: Two convenient ways to flash firmware and configure settings.

Technical Specifications
