Description
Built for Endurance, Not Speed

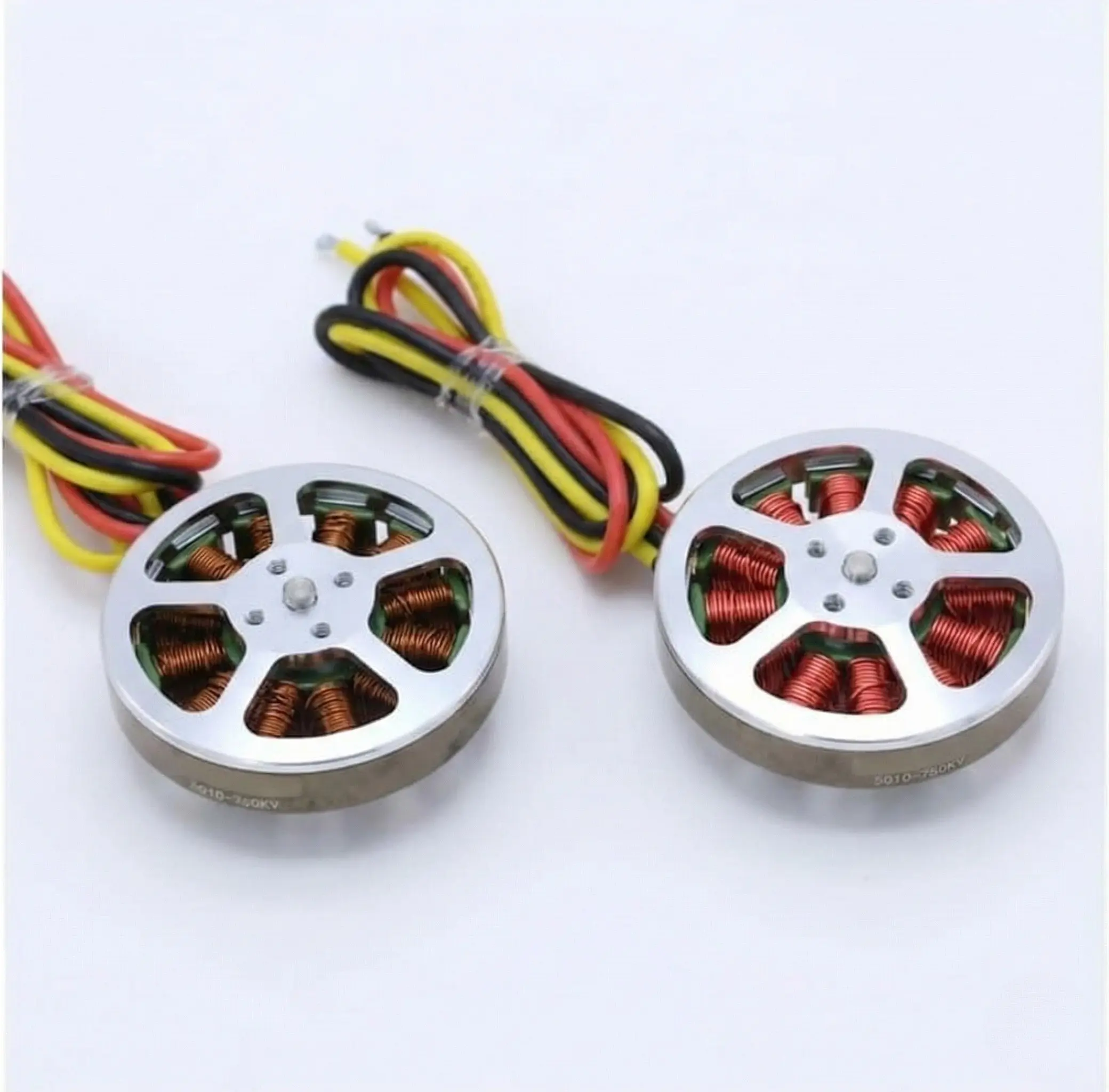

Unlike standard racing motors, the 5010 360KV features a flat, wide “pancake” design. This geometry produces significantly higher torque at lower RPMs, allowing it to swing massive propellers efficiently. This is the secret to achieving record-breaking flight times on frames like the Tarot 650, 680 Pro, or custom S500 builds.
Precision Engineering
The motor features a CNC-machined aluminum front cover with optimized vents for excellent heat dissipation.3 High-quality ball bearings ensure smooth operation and minimal vibrationβcritical for capturing stable, “jello-free” video footage.4
Heavy Lift Capability
Don’t let the low KV fool you. When powered by a 4S to 6S LiPo battery, this motor provides immense lifting power, making it ideal for carrying DSLRs, Gimbals, or survey equipment.5
Key Features
-
High Efficiency: Designed to convert power into lift with minimal waste, extending battery life.
-
High Torque: effortlessly spins 14, 15, or 16-inch propellers.
-
Cool Running: Open design and large surface area prevent overheating during long missions.
-
Vibration Free: Precision balanced for stable aerial photography.
-
Durable: Machined aluminum casing and high-temp copper windings.
Technical Specifications
| Specification | Details |
| Model | Mitoot 5010 |
| KV Rating | 360 RPM/V |
| Motor Size | 50mm x 10mm (Stator) |
| Shaft Diameter | 4mm (Output shaft) |
| Supported Battery | 2S β 6S LiPo (6S Recommended for efficiency) |
| Recommended ESC | 20A – 40A Brushless ESC |
| Recommended Props | 1455, 1555, 1655 Carbon Fiber Props |
| Weight | Approx. 80g |
Recommended Setup (for best results)
-
Battery: 6S LiPo
-
Propeller: 15×5.5 Carbon Fiber
-
ESC: 40A OPTO (Hobbywing or generic)
-
Frame: Tarot 650 Iron Man or 680 Hexacopter
