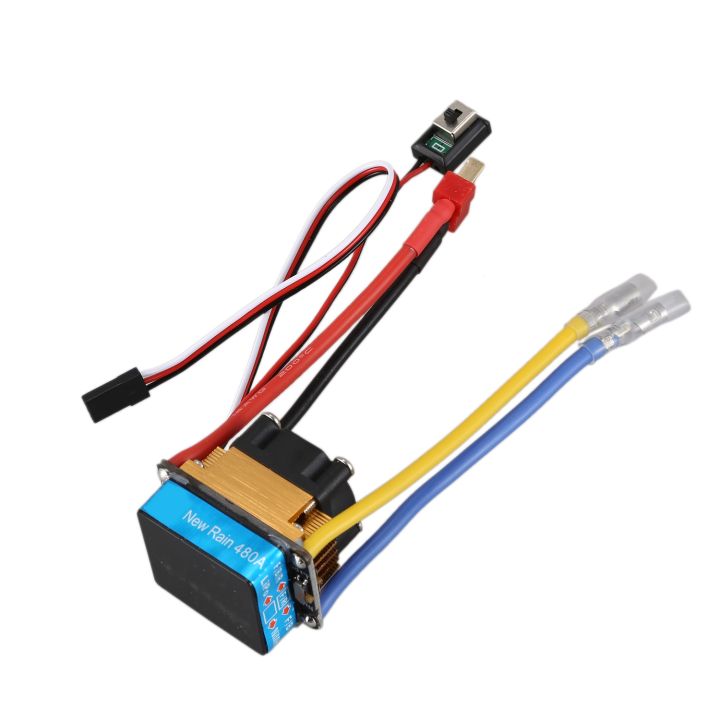

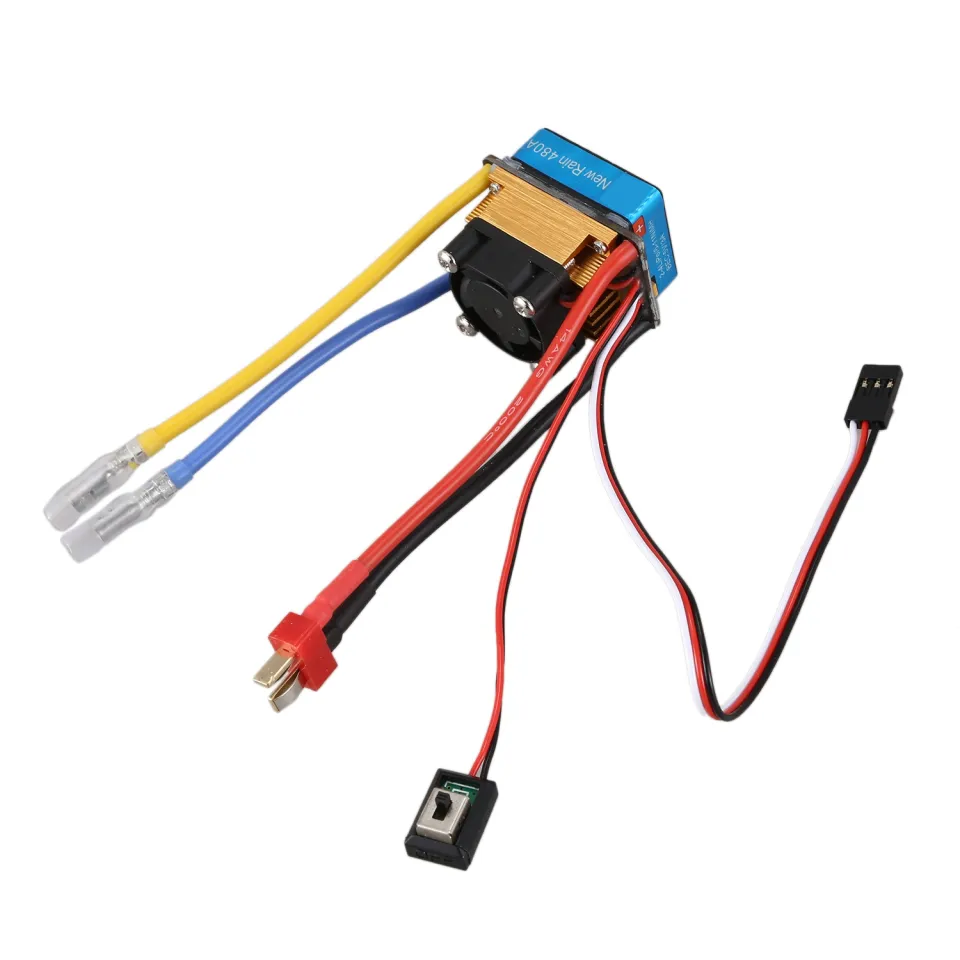

NewRain 480A Brushed ESC with Cooling Fan
The NewRain 480A Brushed ESC is a heavy-duty, versatile speed controller designed to handle high-current brushed motors in 1/10 and 1/8 scale RC models. Equipped with an active cooling fan and a robust heatsink, it ensures stable performance even during intense off-road driving or high-speed boat runs. With its waterproof and dustproof construction, this ESC is ready for any environment, whether it’s a muddy trail or a backyard pond.
1,950.00৳ 2,000.00৳
Active Cooling & High Current Endurance
Heat is the enemy of performance. The NewRain 480A stands out with its integrated top-mounted cooling fan, which continuously draws heat away from the internal MOSFETs. This allows the ESC to sustain high current loads without thermal throttling, making it ideal for heavier RC trucks, crawlers, and dual-motor tanks.
Dual-Mode & Easy Setup
This ESC features a user-friendly jumper system to switch between Racing Mode (Forward/Brake) and Crawler/Boat Mode (Forward/Brake/Reverse). It includes an automatic throttle range calibration feature, meaning it “learns” your transmitter’s neutral point every time you power it on. The built-in 5V/3A BEC provides plenty of power to drive high-torque steering servos and LED lighting kits.
Key Features
-
Active Fan Cooling: Keeps the ESC running cool under heavy loads.
-
Waterproof & Dustproof: Sealed electronics for worry-free driving in wet conditions.
-
Triple Operation Modes: Supports Forward/Brake, Forward/Reverse, and Crawler modes.
-
High-Torque BEC: Built-in 3A BEC to power hungry servos and accessories.
-
Universal Compatibility: Standard T-Plug (Deans) for battery and bullet connectors for the motor.
Technical Specifications
| Specification | Details |
| Model | NewRain 480A |
| Compatible Motor | Brushed Motors (540 / 550 / 775) |
| Input Voltage | 2S – 3S LiPo / 5 – 9 Cell NiMH |
| Continuous Current | 80A |
| Peak Current | 480A |
| BEC Output | 5V / 3A |
| Cooling System | Active Fan + Aluminum Heatsink |
| Weight | ~60g |
| Battery Connector | T-Plug (Deans Style) |
