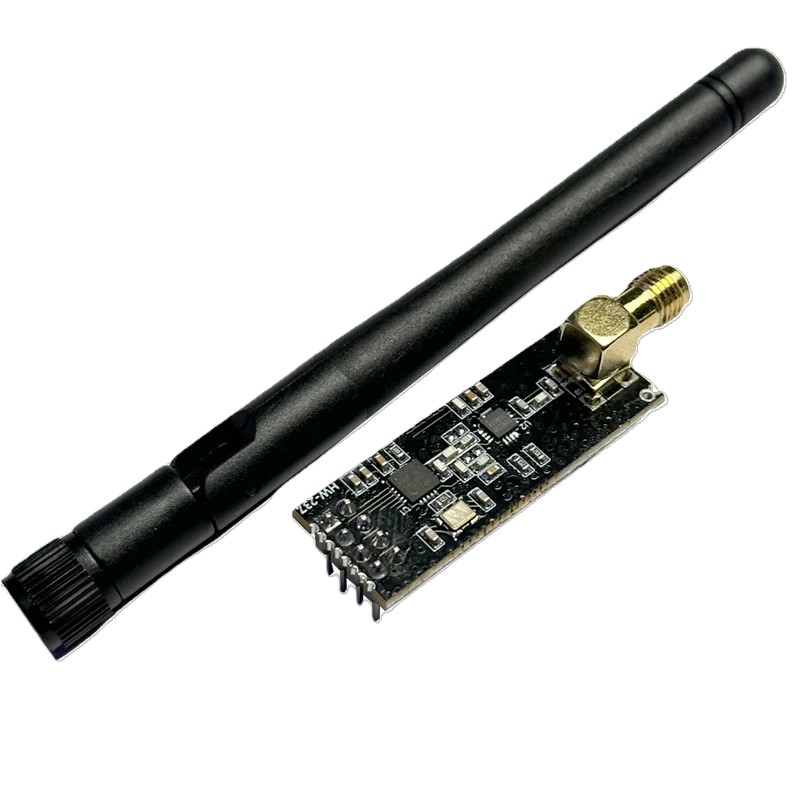

NRF24L01+PA+LNA 2.4GHz Long Range Wireless Transceiver Module with SMA Antenna | 1KM RF Communication for Arduino, IoT & Robotics

Description

Specifications:

• Model: NRF24L01+ with PA (Power Amplifier) & LNA (Low Noise Amplifier)

• Frequency Range: 2.4GHz – 2.525GHz ISM Band

• Modulation Type: GFSK

• Maximum Data Rate: 2Mbps

• Output Power: Up to +20dBm (with PA)

• Receiver Sensitivity: -90dBm to -104dBm

• Communication Range: Up to 1000m (1km) in open space

• Antenna Connector: SMA with Detachable 2dBi Antenna

• Operating Voltage: 3.3V DC (not 5V tolerant)

• Current Consumption:

  • TX Mode: ~115mA (max)

  • RX Mode: ~45mA

• Interface: SPI (3.3V logic)

• Dimensions: 46mm x 16mm

Key Features:

• 🔸 Long-Range Communication up to 1km with external SMA antenna

• 🔸 Built-in PA (Power Amplifier) and LNA (Low Noise Amplifier) for improved signal strength and stability

• 🔸 Low power consumption, perfect for battery-operated devices

• 🔸 High-speed SPI interface for easy microcontroller connection

• 🔸 Compatible with Arduino, Raspberry Pi, ESP32, STM32, and other MCUs

• 🔸 Works on 2.4GHz ISM band, license-free and interference-resistant

• 🔸 Compact design ideal for IoT and wireless sensor networks

Applications:

• 🛰️ Wireless sensor and data networks

• 🤖 Robotics and remote-controlled devices

• 💡 Home automation and IoT systems

• 🚗 Wireless telemetry and communication systems

• 📡 Long-range wireless data transmission

FAQs:
Q1: Can I connect this module directly to Arduino 5V pins?
A: ❌ No, it requires 3.3V. Use a 3.3V regulator and logic level shifter if needed.

Q2: What is the difference between NRF24L01 and NRF24L01+PA+LNA?
A: The PA+LNA version offers longer range and stronger signal due to the amplifier and antenna.

Q3: How far can it transmit data?
A: Up to 1 kilometer in open areas (line of sight).

Q4: Which library should I use with Arduino?
A: Use the RF24 library available in the Arduino IDE.
