Description
Detailed Product Description
Big Power, Tiny Footprint

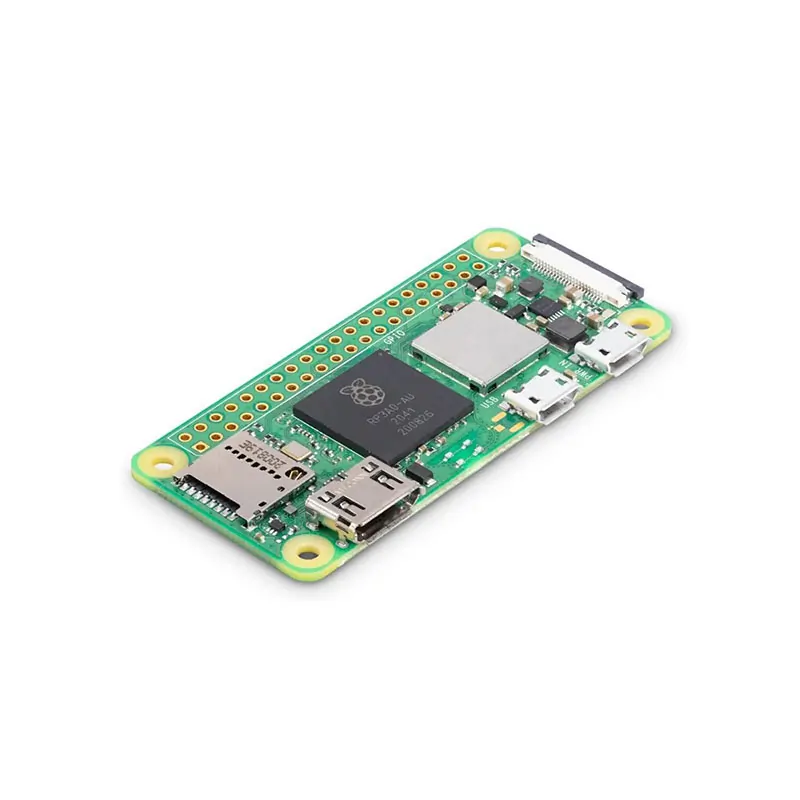

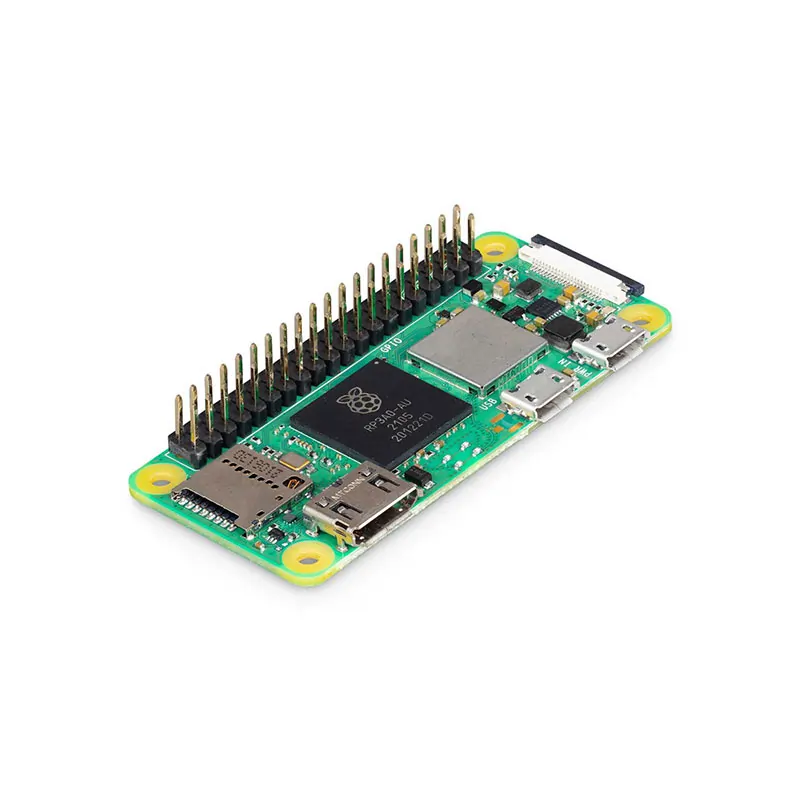

The Raspberry Pi Zero 2 W is built around the RP3A0 System-in-Package (SiP), integrating a Broadcom BCM2710A1 quad-core CPU with 512MB of LPDDR2 SDRAM. This significant performance boost opens up new possibilities for multitasking and heavier workloads that the previous generation couldn’t handle.
Wireless Connectivity Ready
Designed for the modern Internet of Things (IoT), the Zero 2 W comes ready with 2.4GHz 802.11 b/g/n Wireless LAN and Bluetooth 4.2 (BLE). Whether you are building a WiFi security camera or a Bluetooth-controlled robot, this board connects seamlessly without external dongles.
Drop-in Replacement
Upgrading from an older Zero? The Zero 2 W shares the exact same form factor, connector placement, and mounting holes as the original Raspberry Pi Zero. It fits inside most standard Zero cases and works with existing HATs and accessories.
Key Features
-
Processor: Quad-core 64-bit ARM Cortex-A53 @ 1GHz (Up to 5x faster performance).
-
Connectivity: Integrated 802.11 b/g/n WiFi and Bluetooth 4.2 / BLE.
-
Video: Mini HDMI port (supports 1080p60 video output).
-
Storage: MicroSD card slot for OS and data.
-
Camera: CSI-2 camera connector (requires Zero-specific ribbon cable).
-
GPIO: Unpopulated 40-pin GPIO header (compatible with standard HATs).
-
Power: Micro USB power input (5V 2.5A recommended).
Technical Specifications
| Specification | Details |
| Model | Raspberry Pi Zero 2 W |
| CPU | Broadcom BCM2710A1, Quad-core 64-bit SoC |
| Clock Speed | 1GHz |
| RAM | 512MB LPDDR2 |
| Wireless | 2.4GHz IEEE 802.11b/g/n |
| Bluetooth | Bluetooth 4.2, BLE |
| Ports | 1x Mini HDMI, 1x Micro USB (OTG), 1x Micro USB (Power) |
| Dimensions | 65mm x 30mm |
