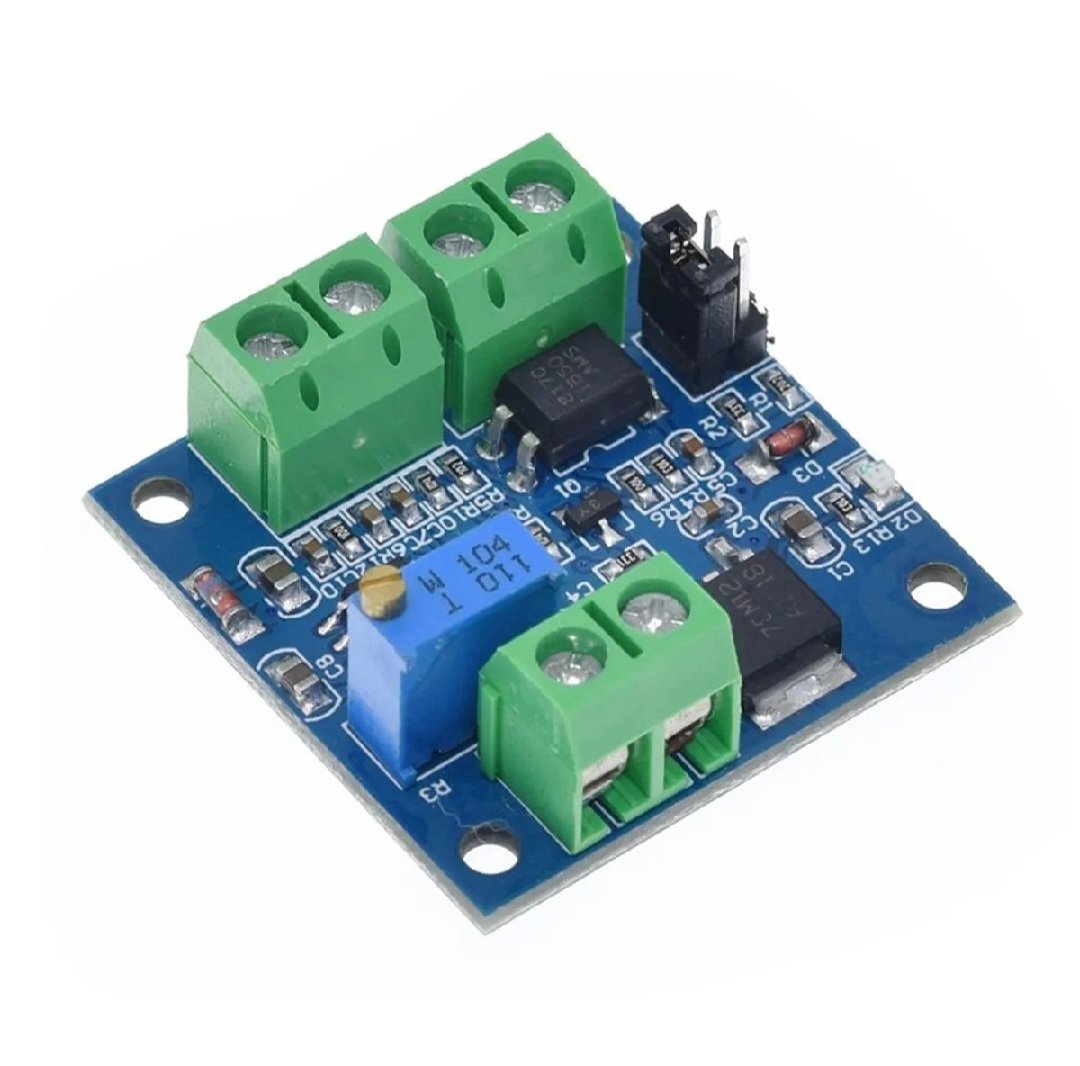

The PWM to Voltage Converter Module is designed to convert digital PWM signals into a smooth analog voltage output of 0–10V.
It is widely used in PLC systems, MCU projects, industrial automation, motor control and signal conditioning applications across Bangladesh.

Main features

• PWM input range from 0% to 100%
• Analog output voltage range: 0–10V
• Compatible with PLC, MCU, Arduino, and automation controllers
• Supports PWM frequency from 1kHz to 3kHz
• Wide DC power supply input (12V–24V)
• Stable and low-noise voltage output
• Compact size for easy installation

• Technical Specifications



  Package Content

  • 1 × PWM to Voltage Converter Module (0–10V)

  ---

  What are the reason this PWM to Voltage Converter Module (0–10V) ?

  This module is ideal for converting PWM signals into stable analog
  voltage for industrial automation and embedded control systems in Bangladesh.

  Key Reasons:

  • Accurate PWM to 0–10V conversion
  • Compatible with PLC and MCU systems
  • Wide power input range (12V–24V)
  • Industrial temperature tolerance
  • 4 Day General Warranty
  • Fast Home Delivery all over Bangladesh

  ---

  What is PWM to Voltage Converter Module (0–10V) ?

  It is an electronic module that converts PWM (digital) signals into proportional analog voltage output,
  commonly used in PLC, automation, and microcontroller-based systems.


  ---

  How PWM to Voltage Converter Module (0–10V) Works?

  The module filters and processes the PWM duty cycle (0%–100%) and converts it into a corresponding analog voltage (0–10V).
  The higher the duty cycle, the higher the output voltage.


  ---

  Usage/Application

  • PLC analog input signal generation
  • MCU / Arduino digital-to-analog conversion
  • Motor speed control systems
  • Industrial automation and control panels
  • Signal conditioning applications

  ---

  Warranty & Return Policy

  Note: This item cannot be returned, but if it arrives damaged or doesn’t work properly,
  please contact us for assistance or resolution. Please make a video before opening the box.


  ---

  Documentation

  PWM Signal Overview

  ---

  Need Assistance ?

  Please call to our office to get more information about products, delivery information, warranty or return policy.
  Mobile: +8801316113774
  Email: roboshopbd123@gmail.com


  ---

  FAQs

  Q: What PWM range does it support?
  A: 0% to 100% duty cycle.

  Q: What is the output voltage range?
  A: 0 to 10V DC.

  Q: Can it be used with PLC systems?
  A: Yes, it is suitable for PLC and automation systems.

  Q: What power supply is required?
  A: 12V to 24V DC.

  Q: Is it suitable for industrial environments?
  A: Yes, it supports -40°C to +85°C working temperature.
