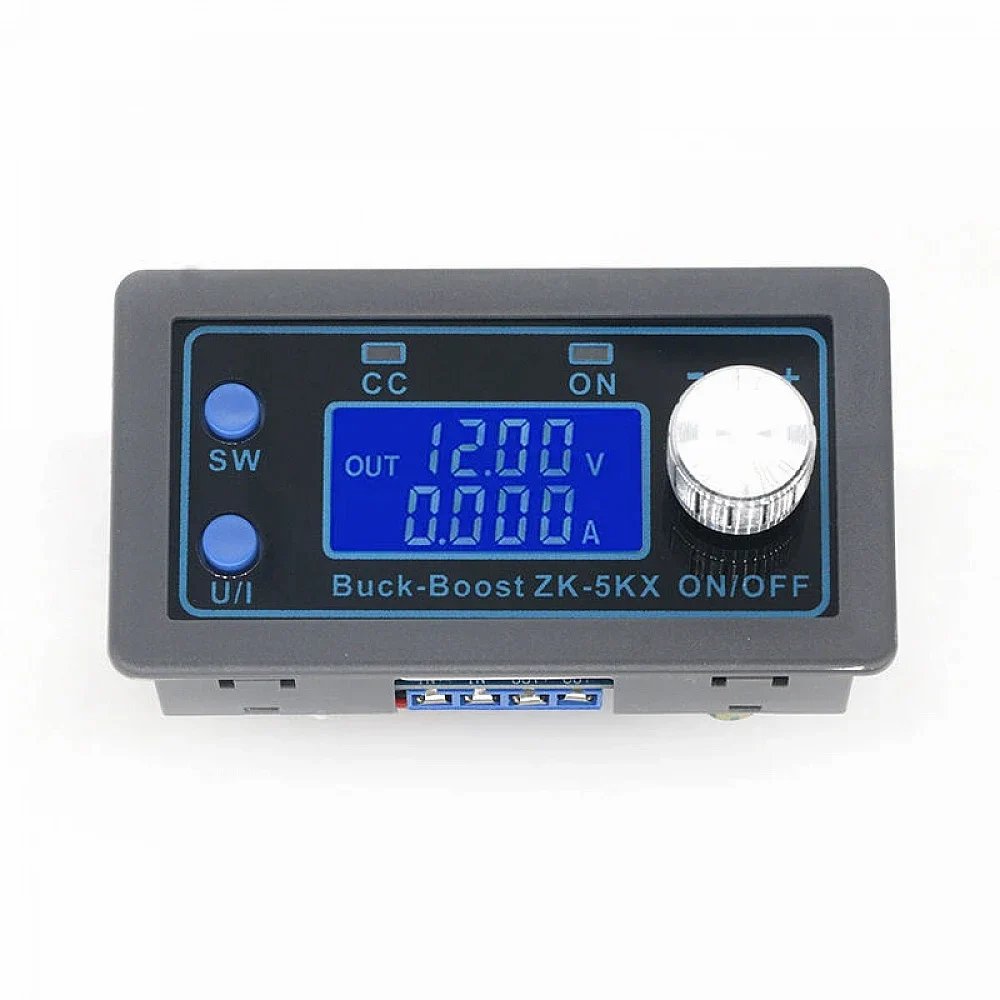

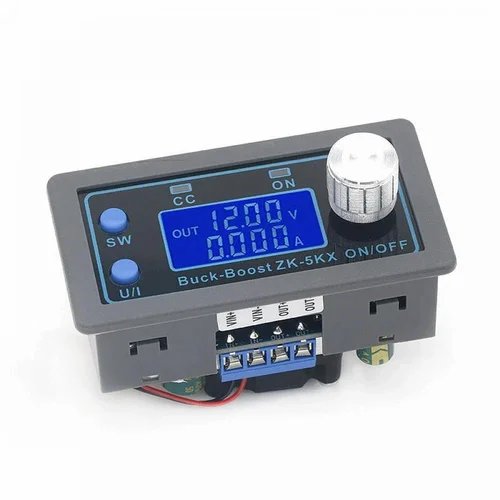

ZK-5KX DC Buck Boost Converter – 0.6–36V 5A 80W Adjustable CC CV Power Supply Module
ZK-5KX DC Buck Boost Converter – 0.6–36V 5A 80W Adjustable CC CV Power Supply Module - Image 2
ZK-5KX DC Buck Boost Converter – 0.6–36V 5A 80W Adjustable CC CV Power Supply Module - Image 3

ZK-5KX DC Buck Boost Converter – 0.6–36V 5A 80W Adjustable CC CV Power Supply Module

Wide Voltage Range: Input 6–36V, output adjustable from 0.6–36V

High Power Output: Delivers up to 5A current and 80W power output

Precise Digital Display: Voltage resolution 0.01V, current resolution 0.001A

Multiple Protections: Includes overcurrent, overvoltage, overpower, overtemperature, and reverse polarity protections

1,600.00৳  1,650.00৳

Specifications:

  • Input Voltage: 6.0 – 36V DC

  • Output Voltage: 0.6 – 36V DC

  • Output Current: Max 5A

  • Output Power: Max 80W

  • Voltage Resolution: 0.01V

  • Current Resolution: 0.001A

  • Conversion Efficiency: ~88%

  • Protection Features:

    • Input anti-reverse protection

    • Output anti-reverse irrigation

    • Undervoltage protection: 5.8–36V adjustable (default: 5.8V)

    • Overvoltage protection: 0.6–36V adjustable (default: 36V)

    • Overcurrent protection: 0–5A adjustable (default: 5A)

    • Overpower protection: 0–80W adjustable (default: 80W)

    • Overtemperature protection: 80–110°C adjustable (default: 110°C)

    • Timeout protection: 0–100h (default: off)

    • Super capacity protection: 0–60Ah (default: off)

  • Soft Start: Yes

  • Operating Frequency: 120kHz

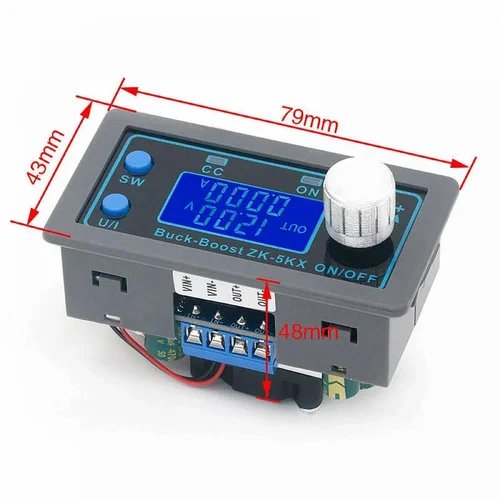

  • Dimensions: 79mm × 43mm × 48mm

Package:

  • 1 x ZK-5KX DC Buck Boost Converter Module

Description:
The ZK-5KX is a versatile DC-DC buck-boost converter with constant current (CC) and constant voltage (CV) control. It supports a wide voltage input and output range (0.6V–36V) and offers a maximum output current of 5A and power of 80W. The integrated LCD display provides real-time voltage and current readings with high precision. Designed with built-in soft start and multiple safety features, it’s ideal for lab power supplies, DIY battery charging, LED driving, and other adjustable power applications.

FAQ:

Q1: Can I use this module for battery charging?
A1: Yes, it supports CC and CV modes, making it suitable for lithium-ion and other rechargeable batteries.

Q2: Does it support both buck (step-down) and boost (step-up)?
A2: Yes, it functions as both a buck and boost converter.

Q3: Is the output voltage adjustable during operation?
A3: Yes, output voltage and current are fully adjustable while the module is running.

Q4: What happens if I exceed the input or output limit?
A4: The module has built-in protections including overvoltage, overcurrent, and overpower protection to prevent damage.

Q5: Can I view both voltage and current on the display?
A5: Yes, the digital display shows both real-time output voltage and current.

ZK-5KX DC Buck Boost Converter – 0.6–36V 5A 80W Adjustable CC CV Power Supply Module

| 0 Ratings

৳ 1,650.00-13.04%

M.R.P. : ৳ 1897.5

Model#: 6625IN STOCK

Offer Will End In

60

Days

23

:

53

:

38

Time is Running Out!

  • Wide Voltage Range: Input 6–36V, output adjustable from 0.6–36V
  • High Power Output: Delivers up to 5A current and 80W power output
  • Precise Digital Display: Voltage resolution 0.01V, current resolution 0.001A
  • Multiple Protections: Includes overcurrent, overvoltage, overpower, overtemperature, and reverse polarity protections

Product Detail

Specifications:

  • Input Voltage: 6.0 – 36V DC

  • Output Voltage: 0.6 – 36V DC

  • Output Current: Max 5A

  • Output Power: Max 80W

  • Voltage Resolution: 0.01V

  • Current Resolution: 0.001A

  • Conversion Efficiency: ~88%

  • Protection Features:

    • Input anti-reverse protection

    • Output anti-reverse irrigation

    • Undervoltage protection: 5.8–36V adjustable (default: 5.8V)

    • Overvoltage protection: 0.6–36V adjustable (default: 36V)

    • Overcurrent protection: 0–5A adjustable (default: 5A)

    • Overpower protection: 0–80W adjustable (default: 80W)

    • Overtemperature protection: 80–110°C adjustable (default: 110°C)

    • Timeout protection: 0–100h (default: off)

    • Super capacity protection: 0–60Ah (default: off)

  • Soft Start: Yes

  • Operating Frequency: 120kHz

  • Dimensions: 79mm × 43mm × 48mm

Package:

  • 1 x ZK-5KX DC Buck Boost Converter Module

Description:
The ZK-5KX is a versatile DC-DC buck-boost converter with constant current (CC) and constant voltage (CV) control. It supports a wide voltage input and output range (0.6V–36V) and offers a maximum output current of 5A and power of 80W. The integrated LCD display provides real-time voltage and current readings with high precision. Designed with built-in soft start and multiple safety features, it’s ideal for lab power supplies, DIY battery charging, LED driving, and other adjustable power applications.

FAQ:

Q1: Can I use this module for battery charging?
A1: Yes, it supports CC and CV modes, making it suitable for lithium-ion and other rechargeable batteries.

Q2: Does it support both buck (step-down) and boost (step-up)?
A2: Yes, it functions as both a buck and boost converter.

Q3: Is the output voltage adjustable during operation?
A3: Yes, output voltage and current are fully adjustable while the module is running.

Q4: What happens if I exceed the input or output limit?
A4: The module has built-in protections including overvoltage, overcurrent, and overpower protection to prevent damage.

Q5: Can I view both voltage and current on the display?
A5: Yes, the digital display shows both real-time output voltage and current.
