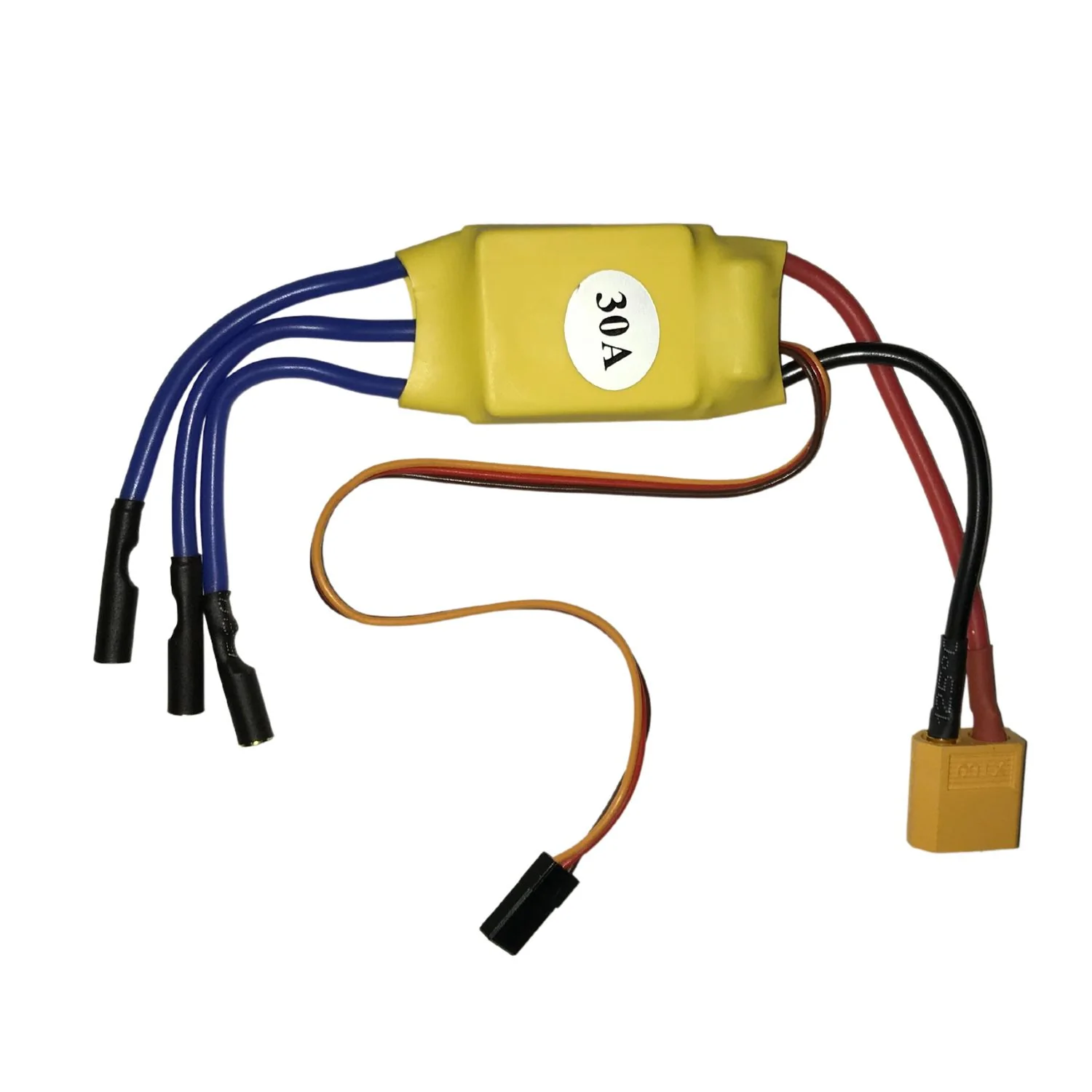

30A Brushless ESC with BEC – XT60 & 3.5mm Bullet Connectors

Description

Plug-and-Play Convenience

Designed for hobbyists and beginners alike, this ESC comes ready to use. The heavy-duty XT60 male connector ensures a secure, high-current connection to your LiPo battery, while the 3.5mm gold-plated bullet connectors snap directly onto the leads of most common brushless motors (like the A2212 1000KV/1400KV).

Reliable Signal & Protection

Built on high-performance MOSFETs and optimized firmware (SimonK/Hobbywing based), this ESC delivers smooth, linear throttle response across the entire range. It includes essential safety features like Startup Protection (motor won’t start if the throttle isn’t at zero) and Low-Voltage Cutoff to prevent over-discharging your batteries. Its aluminum heatsink ensures efficient heat dissipation during sustained flight maneuvers.

Key Features

• Pre-Soldered Connectors: Includes XT60 for battery and 3.5mm bullet plugs for the motor.

• Integrated BEC: Regulated 5V/2A output to power your electronics (no extra battery needed).

• Multi-Battery Support: Works with 2S and 3S LiPo, or 5–12 cell Ni-MH batteries.

• Throttle Calibration: Easily adapts to different transmitter throttle ranges for precise control.

• Safety First: Features abnormal startup, overheat, and throttle signal loss protection.
