Description
Balanced Performance for Multirotors
The 920KV rating is specifically tuned for 9 to 10-inch propellers, providing an optimal balance between lift capacity and flight endurance. Each motor undergoes dynamic balance testing to minimize vibrations, which is crucial for protecting your flight controller’s IMU and ensuring jello-free video footage from your onboard camera.
Durable & Maintenance-Friendly

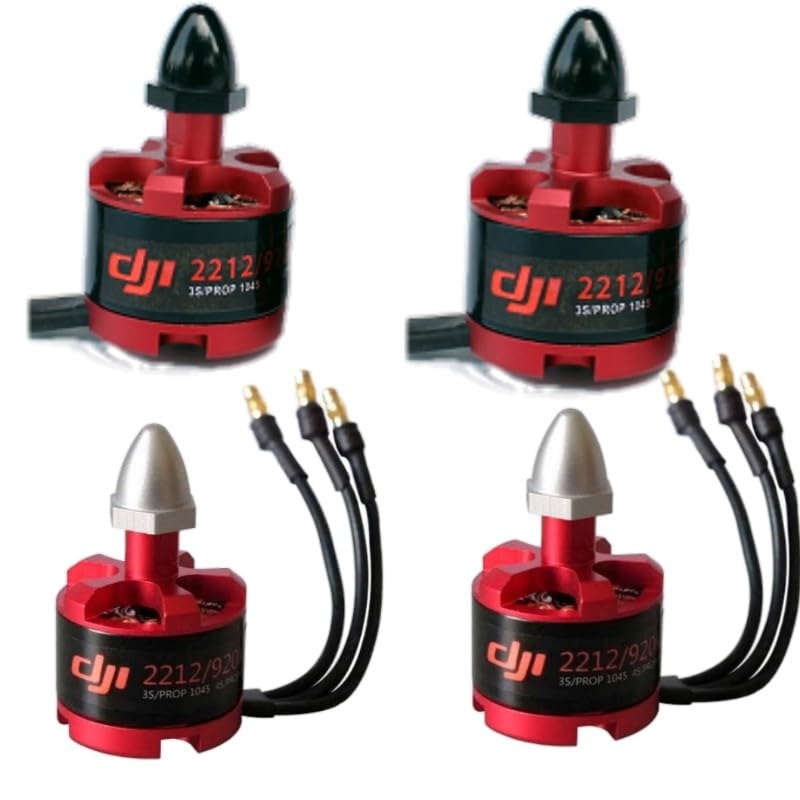

These motors feature high-quality ball bearings and a robust outrunner design that can withstand the rigors of flight. The set includes two Clockwise (CW) motors with black nut caps and two Counter-Clockwise (CCW) motors with silver nut caps, ensuring that your propellers remain securely tightened during flight. For DIY builders, the integrated 3.5mm bullet connectors save you the trouble of complex soldering.
Key Features
-
Complete 4-Motor Set: Includes 2 CW and 2 CCW motors for a standard quadcopter configuration.
-
High Efficiency: Optimized for 1045 propellers to maximize battery life and flight time.
-
Vibration Reduction: Precision-balanced rotors for smoother, more stable flight dynamics.
-
Plug-and-Play: Comes with pre-soldered 3.5mm bullet connectors for easy ESC connection.
-
Versatile Compatibility: Fits perfectly on F330, F450, F550, S500, and DJI Phantom frames.
Technical Specifications
| Specification | Details |
| Model | 2212 (920KV) |
| KV Rating | 920 RPM/V |
| Rotation | 2 CW (Black Cap) / 2 CCW (Silver Cap) |
| Stator Size | 22mm x 12mm |
| Input Voltage | 7V – 12V (3S – 4S LiPo) |
| Max Thrust | ~500g – 800g (Per Motor) |
| Recommended ESC | 20A – 30A |
| Recommended Propeller | 9.4×4.3″ or 10×4.5″ |
| Weight | 53g (Per Motor) |
