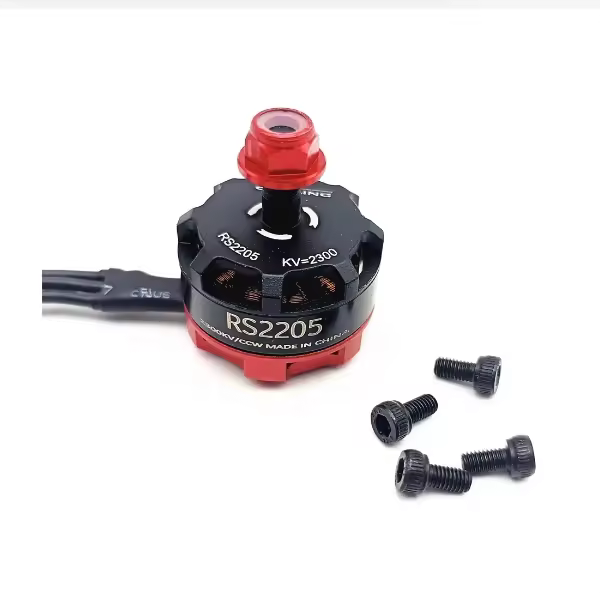

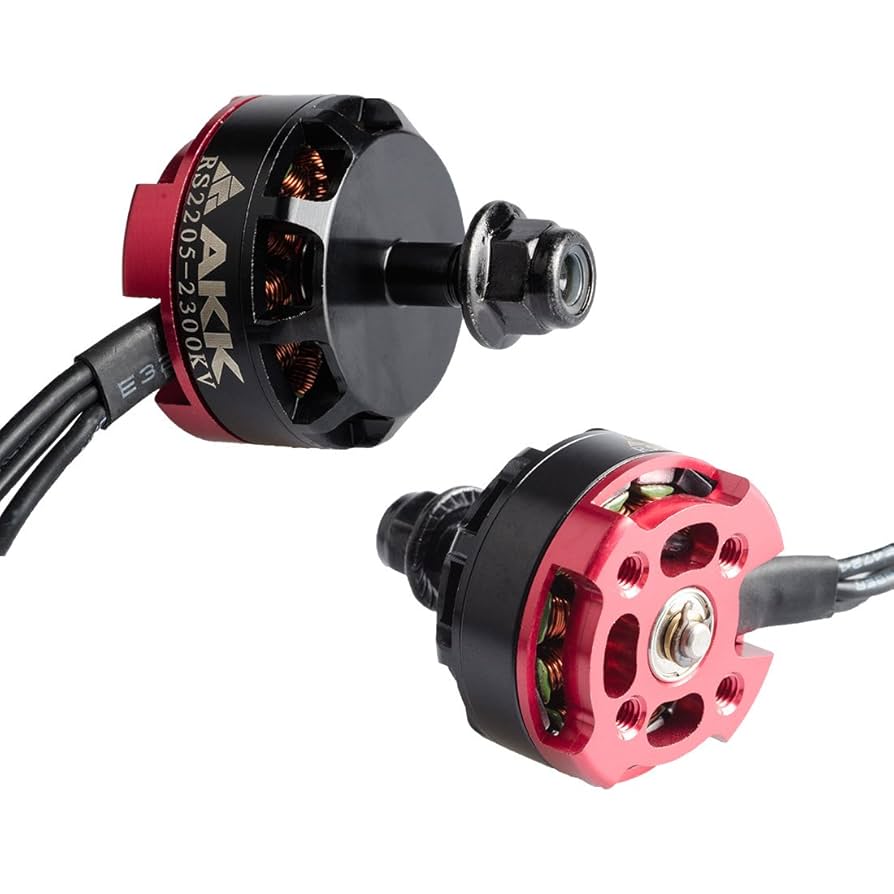

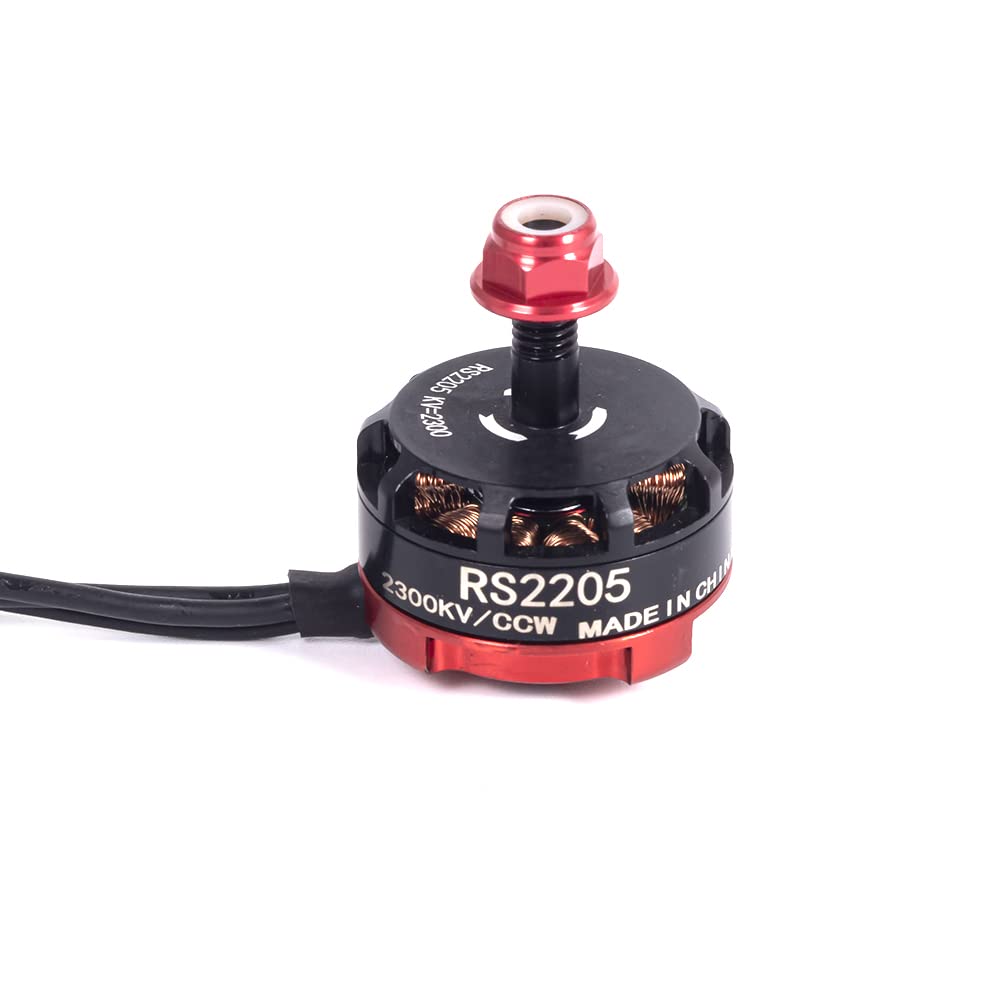

RS2205 2300KV Brushless Racing Motor CW/CCW for FPV Drones & Quadcopters

Description

The RS2205 2300KV Brushless Motor is a next-generation racing motor designed for FPV drone enthusiasts and competitive quadcopter racing. With a 2300KV rating, it delivers exceptional throttle response, speed, and stability for sharp maneuvers and high-speed flights.

Built with high-quality bearings, heat-resistant windings, and a cooling structure, this motor ensures maximum efficiency and durability even under extreme load conditions. Whether you’re building a custom FPV racing drone or upgrading your quadcopter, the RS2205 offers raw power, smooth control, and consistent performance.

🔧 Applications:

• FPV racing drones (250–280mm size class)

• Freestyle quadcopters

• Custom drone builds

• High-speed multirotors

✨ Key Features:

• 2300KV high-speed motor for racing & freestyle

• CW & CCW thread options for secure propeller mounting

• NMB bearings for smoother rotation & less friction

• Cooling fins for better heat dissipation

• Durable aluminum alloy housing

• Optimized for 3S–4S Li-Po batteries

📐 Specifications:

• Model: RS2205 2300KV

• KV Rating: 2300KV

• Voltage Range: 7.4V – 16.8V (2S–4S Li-Po)

• Max Continuous Current: ~28A

• Max Power: ~400W

• Shaft Diameter: 5mm

• Motor Dimensions: 27.9 x 14mm

• Motor Weight: ~30g

• Recommended ESC: 20A–30A

• Recommended Propeller: 5045, 6045

❓ FAQ:
Q1: What’s the difference between 2205 and 2212 motors?
👉 The 2205 is smaller & lighter, designed for racing drones, while the 2212 is larger and better for general drones/quadcopters.

Q2: Can this motor handle 4S batteries?
👉 Yes ✅, it performs best with 3S–4S Li-Po packs for maximum speed.

Q3: What size drone frame is this motor suited for?
👉 Ideal for 210–280mm FPV racing frames.

Q4: Do I need CW & CCW motors both?
👉 Yes, for a quadcopter build you need a mix of clockwise (CW) and counterclockwise (CCW) motors for balanced rotation.
