HSKRC ZD850 Full Carbon Fiber Hexacopter Frame

Industrial-Grade Carbon Fiber Construction

The ZD850 stands out from budget frames by using premium 3K twill carbon fiber for all plates and tubes. The arms are crafted from 20mm diameter carbon tubes, which are significantly more resistant to vibration and breakage during hard landings compared to standard 16mm arms. At RoboShop BD, we recommend this frame for builders who need to carry expensive gimbal systems or heavy sensors, as the pure carbon construction ensures zero electromagnetic interference and maximum strength-to-weight ratio.

Foldable & Optimized Design

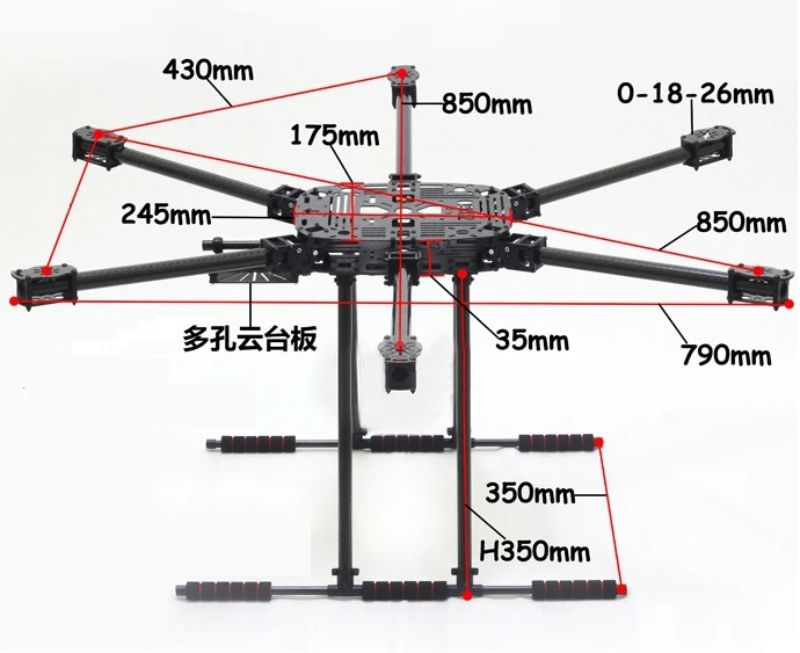

Despite its large size, the ZD850 is highly portable. It features high-quality aluminum alloy folding joints that allow the six arms to collapse inward, making it easy to fit into a standard vehicle. The center plate is exceptionally spacious (245mm x 180mm), providing ample room for complex electronics, dual flight controllers, and high-power PDBs. Additionally, the arms are designed with a 5° upward tilt, which improves handling and stability when the drone is under a heavy payload.

Key Features

• 850mm Wheelbase: Supports massive 15-inch to 16-inch propellers for maximum lift.

• Pure 3K Carbon Fiber: All components are fiberglass-free for extreme rigidity and durability.

• Heavy-Duty Landing Gear: Includes a 16mm+10mm carbon fiber tripod system capable of supporting over 50kg

• Spacious Center Plate: 35mm height clearance between plates for clean cable management and ESC mounting.

• Adjustable Gimbal Mount: Features a 10mm x 330mm carbon tube for flexible camera and sensor placement.

• Aluminum Motor Mounts: 8-hole motor blocks compatible with a wide variety of professional brushless motors.

Technical Specifications
